Shuttle DS81L compact and efficient mini-computer

Shuttle DS81L compact mini-computer

The Taiwanese company Shuttle, an eminent developer of mini-computers and barebone-systems began selling in the European market started selling compact and productive barebone model DS81L. The novelty has the following dimensions: 190 x 165 x 43 mm, based on the platform Intel Haswell c processors Intel Core i3 / i5 / i7, Pentium or Celeron processor and a motherboard with chipset Intel H81.

Shuttle DS81L compact mini-computer

Shuttle DS81L compact mini-computer

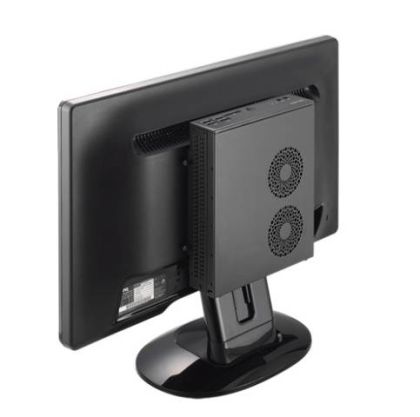

 Shuttle DS81L supports up to 16 GB of memory standard SO-DIMM DDR3-1600, one drive size 2.5 inches with support for SATA 6 GB / s, as well as device interface Mini PCI-E (all available two slots, one of them to pay half the size). For example, you can install Wi-Fi adapter or TV tuner. The main body of new items is located two USB 3.0 and six USB 2.0 ports, two 3.5mm audio ports, a slot for memory cards SD, two-port RJ45, two ports RS232, as well as two HDMI and DisplayPort. Whereby the device can output image format Ultra HD. The product is compatible with the VESA mount.

Shuttle DS81L compact mini-computer

 It is worth noting the use of the original cooling system with heat pipes and two fans. Component base on mat plate includes solid capacitors allow the device to work 24/7 for a long time, even at 50 ° C.

 Shuttle DS81L powered by an external adapter 12V, consumes less than 84 watts and is able to simultaneously play up to two video streams with a resolution of 1920 x 1080 pixels or one stream in the format of Ultra HD (3840 x 2160 pixels).

Shuttle DS81L compact mini-computer

 The suggested retail price of a mini-computer Shuttle DS81L is about $ 200.

Shuttle DS81L compact and efficient mini-computer updated: December 13, 2014 author: Bob Gray
